Proxmox: Saber temperatura sensores CPU

Raul Unzue Pulido 22 diciembre, 2021 Proxmox 1 Comentario 6,057 Vistas

Proxmox: Saber temperatura CPU y otros sensores

Hoy entrada rápida, os explico cómo saber en vuestro sistema Proxmox, vía comando, qué temperatura tiene vuestro sistema. Yo voy a utilizar mi HP Microserver Gen8.

Para saber la temperatura, realizaremos la instalación de los comandos necesarios de la siguiente forma.

Lo primero que haremos es actualizar el sistema:

apt update
apt dist-upgrade
apt autoremove

apt update

apt dist-upgrade

apt autoremove

Una vez todo actualizado, lanzamos la instalación de los paquetes:

root@pve3:~# apt install lm-sensors hddtemp

1	root@pve3:~# apt install lm-sensors hddtemp

Lanzamos el comando de configuración, yo he dejado todas las preguntas por defecto:

root@pve3:~# sensors-detect
# sensors-detect revision $Revision$
# System: HP ProLiant MicroServer Gen8
# Kernel: 5.4.119-1-pve x86_64
# Processor: Intel(R) Xeon(R) CPU E31265L @ 2.40GHz (6/42/7)

This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no): YES
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5595...                       No
VIA VT82C686 Integrated Sensors...                          No
VIA VT8231 Integrated Sensors...                            No
AMD K8 thermal sensors...                                   No
AMD Family 10h thermal sensors...                           No
AMD Family 11h thermal sensors...                           No
AMD Family 12h and 14h thermal sensors...                   No
AMD Family 15h thermal sensors...                           No
AMD Family 16h thermal sensors...                           No
AMD Family 17h thermal sensors...                           No
AMD Family 15h power sensors...                             No
AMD Family 16h power sensors...                             No
Intel digital thermal sensor...                             Success!
    (driver `coretemp')
Intel AMB FB-DIMM thermal sensor...                         No
Intel 5500/5520/X58 thermal sensor...                       No
VIA C7 thermal sensor...                                    No
VIA Nano thermal sensor...                                  No

Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no): YES
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'...               Yes
Found unknown chip with ID 0x0001
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      No

Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no): YES
Found `IPMI BMC KCS' at 0xca2...                            Success!
    (confidence 8, driver `to-be-written')

Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (YES/no): YES
Probing for `National Semiconductor LM78' at 0x290...       No
Probing for `National Semiconductor LM79' at 0x290...       No
Probing for `Winbond W83781D' at 0x290...                   No
Probing for `Winbond W83782D' at 0x290...                   No

Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no): YES
Sorry, no supported PCI bus adapters found.

Next adapter: mga i2c (i2c-0)
Do you want to scan it? (yes/NO/selectively):


Now follows a summary of the probes I have just done.
Just press ENTER to continue:

Driver `to-be-written':
  * ISA bus, address 0xca2
    Chip `IPMI BMC KCS' (confidence: 8)

Driver `coretemp':
  * Chip `Intel digital thermal sensor' (confidence: 9)

Note: there is no driver for IPMI BMC KCS yet.
Check https://hwmon.wiki.kernel.org/device_support_status for updates.

To load everything that is needed, add this to /etc/modules:
#----cut here----
# Chip drivers
coretemp
#----cut here----
If you have some drivers built into your kernel, the list above will
contain too many modules. Skip the appropriate ones!

Do you want to add these lines automatically to /etc/modules? (yes/NO)

Unloading cpuid... OK

root@pve3:~# sensors-detect

# sensors-detect revision $Revision$

# System: HP ProLiant MicroServer Gen8

# Kernel: 5.4.119-1-pve x86_64

# Processor: Intel(R) Xeon(R) CPU E31265L @ 2.40GHz (6/42/7)

This program will help you determine which kernel modules you need

to load to use lm_sensors most effectively. It is generally safe

and recommended to accept the default answers to all questions,

unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.

Do you want to scan for them? This is totally safe. (YES/no): YES

Module cpuid loaded successfully.

Silicon Integrated Systems SIS5595... No

VIA VT82C686 Integrated Sensors... No

VIA VT8231 Integrated Sensors... No

AMD K8 thermal sensors... No

AMD Family 10h thermal sensors... No

AMD Family 11h thermal sensors... No

AMD Family 12h and 14h thermal sensors... No

AMD Family 15h thermal sensors... No

AMD Family 16h thermal sensors... No

AMD Family 17h thermal sensors... No

AMD Family 15h power sensors... No

AMD Family 16h power sensors... No

Intel digital thermal sensor... Success!

(driver `coretemp')

Intel AMB FB-DIMM thermal sensor... No

Intel 5500/5520/X58 thermal sensor... No

VIA C7 thermal sensor... No

VIA Nano thermal sensor... No

Some Super I/O chips contain embedded sensors. We have to write to

standard I/O ports to probe them. This is usually safe.

Do you want to scan for Super I/O sensors? (YES/no): YES

Probing for Super-I/O at 0x2e/0x2f

Trying family `National Semiconductor/ITE'... Yes

Found unknown chip with ID 0x0001

Probing for Super-I/O at 0x4e/0x4f

Trying family `National Semiconductor/ITE'... No

Trying family `SMSC'... No

Trying family `VIA/Winbond/Nuvoton/Fintek'... No

Trying family `ITE'... No

Some systems (mainly servers) implement IPMI, a set of common interfaces

through which system health data may be retrieved, amongst other things.

We first try to get the information from SMBIOS. If we don't find it

there, we have to read from arbitrary I/O ports to probe for such

interfaces. This is normally safe. Do you want to scan for IPMI

interfaces? (YES/no): YES

Found `IPMI BMC KCS' at 0xca2... Success!

(confidence 8, driver `to-be-written')

Some hardware monitoring chips are accessible through the ISA I/O ports.

We have to write to arbitrary I/O ports to probe them. This is usually

safe though. Yes, you do have ISA I/O ports even if you do not have any

ISA slots! Do you want to scan the ISA I/O ports? (YES/no): YES

Probing for `National Semiconductor LM78' at 0x290... No

Probing for `National Semiconductor LM79' at 0x290... No

Probing for `Winbond W83781D' at 0x290... No

Probing for `Winbond W83782D' at 0x290... No

Lastly, we can probe the I2C/SMBus adapters for connected hardware

monitoring devices. This is the most risky part, and while it works

reasonably well on most systems, it has been reported to cause trouble

on some systems.

Do you want to probe the I2C/SMBus adapters now? (YES/no): YES

Sorry, no supported PCI bus adapters found.

Next adapter: mga i2c (i2c-0)

Do you want to scan it? (yes/NO/selectively):

Now follows a summary of the probes I have just done.

Just press ENTER to continue:

Driver `to-be-written':

* ISA bus, address 0xca2

Chip `IPMI BMC KCS' (confidence: 8)

Driver `coretemp':

* Chip `Intel digital thermal sensor' (confidence: 9)

Note: there is no driver for IPMI BMC KCS yet.

Check https://hwmon.wiki.kernel.org/device_support_status for updates.

To load everything that is needed, add this to /etc/modules:

#----cut here----

# Chip drivers

coretemp

#----cut here----

If you have some drivers built into your kernel, the list above will

contain too many modules. Skip the appropriate ones!

Do you want to add these lines automatically to /etc/modules? (yes/NO)

Unloading cpuid... OK

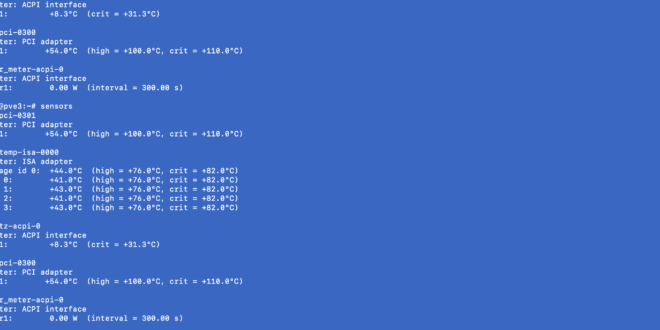

Para saber la temperatura usaremos el siguiente comando:

root@pve3:~# sensors
tg3-pci-0301
Adapter: PCI adapter
temp1:        +52.0°C  (high = +100.0°C, crit = +110.0°C)

coretemp-isa-0000
Adapter: ISA adapter
Package id 0:  +44.0°C  (high = +76.0°C, crit = +82.0°C)
Core 0:        +44.0°C  (high = +76.0°C, crit = +82.0°C)
Core 1:        +43.0°C  (high = +76.0°C, crit = +82.0°C)
Core 2:        +42.0°C  (high = +76.0°C, crit = +82.0°C)
Core 3:        +44.0°C  (high = +76.0°C, crit = +82.0°C)

acpitz-acpi-0
Adapter: ACPI interface
temp1:         +8.3°C  (crit = +31.3°C)

tg3-pci-0300
Adapter: PCI adapter
temp1:        +52.0°C  (high = +100.0°C, crit = +110.0°C)

power_meter-acpi-0
Adapter: ACPI interface
power1:        0.00 W  (interval = 300.00 s)

root@pve3:~# sensors

tg3-pci-0301

Adapter: PCI adapter

temp1: +52.0°C (high = +100.0°C, crit = +110.0°C)

coretemp-isa-0000

Adapter: ISA adapter

Package id 0: +44.0°C (high = +76.0°C, crit = +82.0°C)

Core 0: +44.0°C (high = +76.0°C, crit = +82.0°C)

Core 1: +43.0°C (high = +76.0°C, crit = +82.0°C)

Core 2: +42.0°C (high = +76.0°C, crit = +82.0°C)

Core 3: +44.0°C (high = +76.0°C, crit = +82.0°C)

acpitz-acpi-0

Adapter: ACPI interface

temp1: +8.3°C (crit = +31.3°C)

tg3-pci-0300

Adapter: PCI adapter

temp1: +52.0°C (high = +100.0°C, crit = +110.0°C)

power_meter-acpi-0

Adapter: ACPI interface

power1: 0.00 W (interval = 300.00 s)

Nos dice incluso, lo que se determina crítico, así que está muy bien, porque esto nos lo podemos llevar a Zabbix, por ejemplo.
